This page lists legacy or discontinued accessories only
For a list of current SR accessories, please see the
Cables & Etc pages
| Legacy A/D Connectors & Enclosures |
| Product |
Size |
Use With |
Replaced By |
Price |
| CABLE-S1UABA-ANALOGIN |
Banana plug to alligator |
SER1CH-UA-BANA |
none |
$20 |
| CABLE-S1UABA-BANANA3 |
Banana plug with solder tab |
SER1CH-UA-BANA |
none |
$7 |
| CABLE-S1UADB-ANALOGIN |
Analog input, DB9 female to alligator |
SER1CH-UA-DSUB |
none |
$20 |
| CABLE-S1UADB-PWRS232 |
Power/RS232, DB15 male to 2.1mm+DB9 |
SER1CH-UA-DSUB |
none |
$20 |
| TRM15E |
1.25" x 4" x 1.5" H, 15 euro mini term |
USB4CH, PARxCH |
none |
$35 |
| TRM25E |
1.75" x 6.25" x 1.5", H 25 euro mini term |
USBxCH, PAR8CH |
none |
$45 |
| TRM8X2 |
1.25" x 5" x 1.5" H, 16 euro mini term |
PAR24B, DSPA64 |
none |
N/A |
| TRANS-WALL-09V-DC |
110 vac to 9 vdc US transformer |
USBxCH,PARxCH |
none |
N/A |
| TRANS-EURO-09V-DC |
220 vac to 9 vdc Euro transformer |
USBxCH,PARxCH |
none |
$15 |
| TRANS-WALL-12V-DC |
110 vac to 12 vdc US transformer |
VREF-399 |
none |
$15 |
| TRANS-EURO-12V-DC |
220 vac to 12 vdc Euro transformer |
VREF-399 |
none |
$15 |
| RACK-PANEL4CH-6 |
19" x 2U with 6 cutouts |
USB4CH,AMP4CH-DF |
none |
Call |
| RACK-A64 |
19" x 10" x 2U |
DSPA64 |
none |
N/A |
| UPGRADE-RACK-24B |
19" x 10" x 2U |
PAR24B |
none |
N/A |
SER1CH-UA-BANA Cables
Not recommended for new designs.
CABLE-S1UABA-BANANA3
CABLE-S1UABA-ANALOGIN
Analog input connectors for SER1CH-UA banana jack model. The BANANA3
is a set of banana plugs only (set of 3). The ANALOGIN is a set of 3
cables with banana plugs and alligator clips on 12 inch wires.
Click photo for views.
|
|
| SER1CH-UA-BANA |
 |
|
| SER1CH-UA-BANA Cables |
| Use with: |
SER1CH-UA-BANA (banana jack model) |
| Length: |
12 inch (ANALOGIN) |
| Input Connection: |
Banana plug with solder lug (BANANA3)
Banana plug to alligator clip (ANALOGIN) |
| Price: |
$7 CABLE-S1UABA-BANANA3
$20 CABLE-S1UABA-ANALOGIN |
SER1CH-UA-DSUB Cables
Not recommended for new designs.
CABLE-S1UADB-ANALOGIN
CABLE-S1UADB-PWRS232
Discrete wire cables for SER1CH-UA D-shell model. The ANALOGIN cable
connects front DB9 via 12 inch wires to 3 alligator clips for the analog
input. The PWRS232 cable connects back DB15 via 9 inch wires to both a
2.1mm jack for power and a female DB9 for the RS232 connection to the PC.
Click photo for views.
|
|
| SER1CH-UA-DSUB |
 |
|
| SER1CH-UA-DSUB Cables |
| Use with: |
SER1CH-UA-DSUB (D-shell model) |
| Input Connection: |
3 alligator clips |
| Power Connection: |
2.1mm power jack |
| RS232 Connection: |
9-pin female D-shell |
| Price: |
$20 (CABLE-S1UADB-ANALOGIN)
$20 (CABLE-S1UADB-PWRS232) |
TRM15E Terminal Board
Not recommended for new designs.
TRM15E Terminal Board Features
• Connects discrete wires to 15 pin D-shell
• 15 Euro style screw blocks
• Use with PAR4CH analog input
• Use with PARxCH digital I/O
• Price $35
|
|
| TRM15E |
|
|
Product Description
The TRM15E terminal board connects inputs from discrete wires to a
15 pin D-shell using Euro style screw blocks. Each terminal board
comes with standoffs and an 8" connecting cable.
Typically the TRM15E is used with the analog input D-shell on the
PAR4CH, or the digital IO D-shell on the PARxCH (x=1,4,8). Other
applications are certainly possible.
One TRM15E is included with every PAR1CH and PAR4CH order, additional
terminal boards must be ordered separately.
Specifications Table
| TRM15E Specs |
| Screw Blocks: |
15, supports 4 differential inputs plus ground |
| Included Cable: |
8" ribbon, 15 pin D-shell, MF |
| Board Dimension: |
1.25" x 4.00" x 1.50" H with mounting standoffs |
| Typical use: |
PAR4CH analog input, PARxCH digital I/O |
| Price: |
$35 |
TRM25E Terminal Board
Not recommended for new designs.
TRM25E Terminal Board Features
• Connects discrete wires to 25 pin D-shell
• 25 Euro style screw blocks
• Use with PAR8CH analog input
• Price $45
|
|

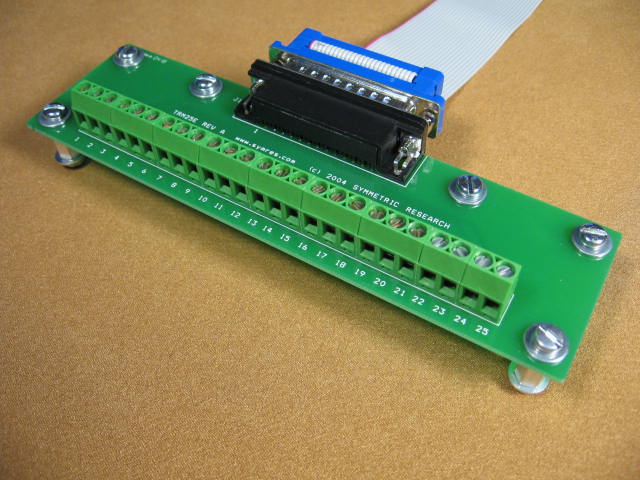

| TRM25E |
|
|
Product Description
The TRM25E terminal board connects inputs from discrete wires to
25 pin D-shell using Euro style screw blocks. Each terminal board
comes with standoffs and an 8" connecting cable.
Typically the TRM25E is used with the analog input D-shell on the
PAR8CH. One TRM25E is included with every PAR8CH order.
Specifications Table
| TRM25E Specs |
| Screw Blocks: |
25, supports 8 differential inputs plus ground |
| Included Cable: |
8" ribbon, 25 pin D-shell, MF |
| Board Dimension: |
1.75" x 6.25" x 1.50" H with mounting standoffs |
| Typical Use: |
PAR8CH analog input,
USBxCH digital I/O |
| Optional Cable: |
Extend with CABLE-DB25-MF-6 |
| Price: |
$45 |
TRM8X2 Spec Sheet
Not recommended for new designs.
TRM8X2 Terminal Board Features
• Connects discrete wires to 16 pin ribbon cable header
• 18 Euro style screw blocks, 2 for ground
• Use with PAR24B or DSPA64/HLF analog input
• Price N/A
|
|
| TRM8X2 |
 |
|
Product Description
The TRM8X2 terminal board connects inputs from discrete wires to
a 16 pin ribbon cable header using Euro style screw blocks. Each
terminal board comes with standoffs and a 6" connecting cable.
Typically the TRM8X2 is used with the analog input headers on the
PAR24B and DSPA64 A/Ds.
One TRM8X2 is included with every PAR24B and DSPA64 order. Additional
terminal boards for up to seven more DSPA64 analog input headers must
be ordered separately. Longer cable lengths are available upon
request.
Specifications Table
| TRM8X2 Specs |
| Screw Blocks: |
18, supports 8 differential inputs + 2 ground |
| Included Cable: |
6" ribbon, 16 pin ribbon cable header |
| Board Dimension: |
1.25" x 5.00" x 1.50" H with mounting standoffs |
| Connects To: |
PAR24B or
DSPA64/HLF
analog input headers |
| Price: |
N/A |
Wall Transformers
The TRANS-SWITCHER-09V-DC is recommend for new designs.
TRANS-WALL-09V-DC
TRANS-WALL-12V-DC
TRANS-EURO-09V-DC
TRANS-EURO-12V-DC
SR products work with 9 and 12 vdc US or Euro unregulated wall transformers.
US transformers take 110 vac input on a flat two prong plug.
Euro transformers take 220 vac input on a round Continental 2 prong plug.
Both provide DC output voltage on a 2.1mm power plug.
One US style transformer is included with each bundled A/D.
A Euro style transformer will be substituted for free on request.
Click photo for views.
|
|
| Wall Transformers |
 |
|
| Wall Transformers |
| Use 9V With: |
USBxCH,
PARxCH,
AMP4CH-DF,
SER1CH-UA |
| Use 12V With: |
VREF-399 (12v required) |
| Cord Length: |
6 foot |
| US Input: |
US 110 vac, flat 2 prong |
| Euro Input: |
Euro 220 vac, round Continental 2 prong |
| Output Connector: |
2.1 mm plug |
| Output Voltage: |
9 vdc or 12 vdc |
| Price: |
N/A TRANS-WALL-09V-DC (US)
$15 TRANS-WALL-12V-DC (US)
$15 TRANS-EURO-09V-DC
$15 TRANS-EURO-12V-DC |
Rack Panels
Not recommended for new designs.
RACK-PANEL4CH-6 Features
• Standard 19" wide, 2U high
• Anodized aluminum
• Six cutouts
• Fits USB4CH, AMP4CH-DF
• Price Call
• Spec Table
|
|
| Rack Panel Front View |
 |
|
Product Description
RACK-PANEL4CH-6 is a sturdy 19" wide, 2U high panel made of
anodized aluminum designed to fit in standard rack mount
frames. It has 6 cutouts for attaching units like the USB4CH
and AMP4CH-DF while still protected in their enclosures.
The photos show front and back views with a PAR4CH data acquisition
board above an AMP4CH-DF amplifier and a PARGPS timing
module on the right. Other configurations are easily made with
only a screwdriver.
Panels with cutouts sized for the USB8CH are also available, as are
plain RACK-PANELs with no holes or cutouts that allow for custom
mountings. For example, the plain rack panel at the bottom of the top
photo was customized to hold 3 TRM15E boards.
Specifications Table
| RACK-PANEL4CH-6 Specs |
| Use With: |
USB4CH,
AMP4CH-DF |
| Panel Dimensions: |
19" W x 2U H |
| Cutout Dimensions: |
5 1/2" W x 1 5/8" H |
| Number of Cutouts: |
6, arranged as 2 rows of 3 |
| Price: |
Call |
Rack Box Spec Sheet
Not recommended for new designs.
Rack Enclosure Features
• Standard 19" wide, 2U high
• Anodized aluminum
• Vinyl coated steel top
• Use for DSPA64/HLF
• Use for PAR24B
|
|
| Rack Mount DSPA64 Enclosure |
 |
|
Product Description
The 2U high, full width rack units have slide-in
vinyl coated steel tops and bottoms and come with handles and power
cord. They can be used with any of our A/D boards. Both A/D and
power supply are mounted inside.
For additional information see:
DSPA64/HLF Options,
PAR24B Options
Specifications Table
| RACK Specs |
| Handles: |
included |
| Power Cord: |
included |
| Power Connector: |
110 vac inlet |
| Side Materials: |
anodized aluminum |
| Top/Bottom Materials: |
vinyl coated steel, slide top |
| Enclosure Dimension: |
19" x 12 1/2" x 3 3/4" H or
2U high, full width, 12 1/2" deep |
| For Containing: |
DSPA64 or PAR24B and power supply |
|
